Place of Origin: | China |
Brand Name: | FAMOUS |
Certification: | CE, ISO |
Model Number: | 960mm & 1180mm |
Minimum Order Quantity: | 100 square meter |
---|---|
Price: | USD15 per square meter |
Packaging Details: | Standard seaworthy packing |
Delivery Time: | 15 to 30 working days |
Payment Terms: | 30% T/T IN ADVANCE AND 70% T/T BEFORE SHIPMENT |
Supply Ability: | 200,000 per month |
Product Name: | Cold Storage Room Panels | Panel Thickness: | 50mm -200mm |
---|---|---|---|
Effective Width: | 960mm, 1000mm Or Customized | Length: | Customized, Up To 11.8mts |
Plate Material: | Metal | Core Material: | Polyurethane Foam |
PU Density: | 42kgs | Color: | RAL |
Certification: | ISO9001, CE | Fire Resistant: | B1, B2 |
75mm Thick Cam Lock PU Panel for Cold Room Food Storage
Panel Specifications
Cold Room Polyurethane ( PU) Sandwich Panels | |
Thickness | 50, 75, 100, 120, 150 , 200 mm |
Width | 960mm, 1000mm or customized |
Length | Up to 11.8mts |
PU Density | 38 - 40 – 42 – 46 kg / m3 |
Joint | Camlock (tongue and groove) |
Skin of the panel | Prepainted steel sheet /stainless steel / Aluminium (Stucco embossed or pre-painted) |
Usage | Wall & Floor & Ceiling |
Fire Resistance | B1, B2 |
Metal Specifications:
Steel / Stainless Steel
Upper surface thickness: Standard 0.40 – Max: 0.80 mm
Lower surface thickness: Standard 0.40 – Max: 0.80 mm
Other thicknesses can be supplied subject to discussion with us.
The steel used for the skin of the panels conforms to EN 10143. Hot-dip galvanized with 100(standard), 200, 225 or 275 g/m2 of zinc options
Panel Type and Temperature Control Performance
Desirable Temperature for different usages
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -25 °C: Freezer Storage
-25 °C ~ -40 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer

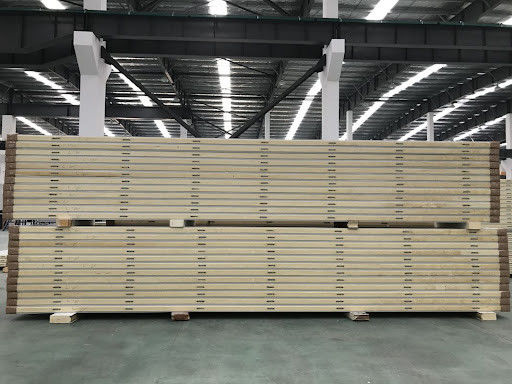

Detailed Product Images
Applications
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, communication equipment,ship manufacturing and more.
PROJECTS
About US
Hangzhou FAMOUS Steel Engineering Co.,Ltd. (FASECbuildings) is specialized in design, research, manufacture of the cold room panels and kinds of refrigeration equipment. We always kept its vanguard role in Chinese Refrigeration machinery industry. FASECbuildings is a member of China Refrigeration Institute.
Our panels and refrigerator equipment have been sold all over the world, such as North Ameirca, South America, Europe, AU/NZ, Southeast Asia, and Middle -east etc. We have obtained the trust of our customers for the quality and delivery in time service after more than ten years hard working.
In addition, we have the certifications of the quality management system(ISO 9001:2008), environment safety management system(ISO 14001:2004), occupational health and management system(OHSMS) (GB/T28001-2001).
Contact us and tell us about your geographic location, industry and your application/usage for Cold Room by email or phone. We are happy to talk about estimates and our solutions depending on your specific industry needs.
