Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'

Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'

    • Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'
    • Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'
  • Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'

    Product Details:

    Place of Origin: China
    Brand Name: Hongfeng
    Certification: ISO9001:2008, SGS, etc.
    Model Number: PEB001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD20 per square meters
    Packaging Details: Seaworthy packings into container or bulk vessel
    Delivery Time: Based on client's needs
    Payment Terms: L/C,T/T
    Supply Ability: 600,000 tons per Year
    Contact Now
    Detailed Product Description
    Material: Steel Steel Grade: A36
    Panel Type: 24G Rafter Type: Truss Frame

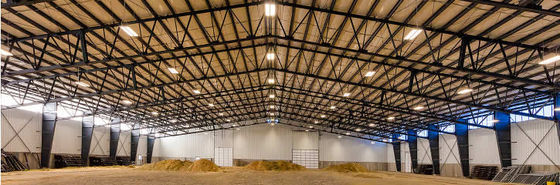

    Industrial TrussFrame Open Web Rafter System Allows For Clearspans In Excess Of 250'



    Column-free interior space in your metal building
    The Ultimate in Design Flexibility

    Our TrussFrame is a hybrid metal building rigid frame system. It consists of typical three-plate built-up columns with solid webs and open-web rafters. The rafters consist of two-plate built-up tees assembled into a truss, using web angles.

    Compatible with all Nucor Roof Systems, Nucor TrussFrame provides maximum design flexibility with unobstructed, column-free interior space. Unsightly beams and columns are eliminated, providing a spacious design aesthetic. The unique open web design allows HVAC duct systems, lighting, wiring and sprinkler systems to be incorporated between the trusses, reducing required building heights.

    Nucor TrussFrame Flange Bracing
    Features & Benefits
    Spans in excess of 250' of column-free interior space offers maximum design flexibility
    Allows HVAC, wiring, and sprinkler systems to be incorporated into the trusses
    Compatible with all Nucor Roof Systems
    Available in both gable and single slope
    Modular option available
    Truss-rafter depths up to 12' or greater
    Symmetrical and asymmetrical
    Can support either purlins or joists
    Gray primer color

    TrussFrame is ideal for
    Agricultural Buildings
    Retail Stores
    Manufacturing Plants
    Sports & Recreational Facilities
    Arenas and Stadiums
    Aircraft Hangars
    Warehouses
    TrussFrame Column to Rafter Connection
    Nucor TrussFrame Purlin Connection
