Prefabricated steel structure warehouse materials:
|
Material |
Specification |
|
Length |
Single slope, double slope, muti slope |
|
Width |
Single span, double-span, Multi-span |
|
Height |
single floor, double floors |
|
Column |
Q235, Q345 welded H section steel |
|
Beam |
Q235, Q345 welded H section steel |
|
Purlin |
Q235 C channel or Z channel |
|
Knee brace |
Q235 angle steel |
|
Vertical and transversal support |
Q235 angle steel, round bar or steel pipe |
|
Tie bar |
Q235 steel pipe |
|
Brace |
Q235 round bar |
|
Cladding system |
EPS, PU, Fiber glass wool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in Diferent colors&gauge |
|
Partition wall |
sandwich panels (EPS, PU, Fiber glass wool etc.) available in Diferent colors&gauges |
|
Door |
sandwich panel sliding door or roller door |
|
Gutter |
stainless steel or color steel sheet |
|
Rainspout: |
PVC |
|
Live load on roof |
In 120kg/Sqm (Color steel panel surrounded) |
|
Wind resistance grade |
12 grades |
|
Earthquake-resistance |
8 - 9 grades |
|
Structure usage |
Up to 50 years |
|
Finishing options |
vast array of colors and textures available |
|
Paint Options |
Gray paint, red paint, white paint, expoxy zinc etc. Or Galvanized |

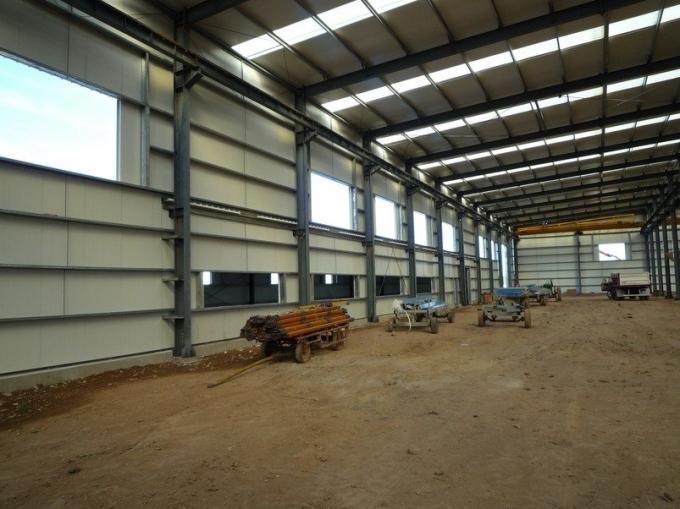

Pictures of Prefabricated steel structure warehouse
