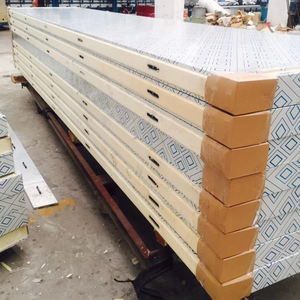

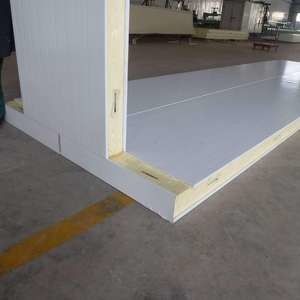

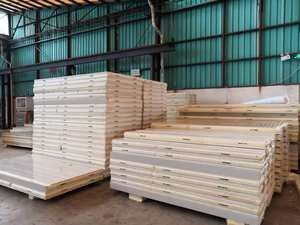

Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room

Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room

    • Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room
    • Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room
    • Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room
  • Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room

    Product Details:

    Place of Origin: Hangzhou
    Brand Name: FAMOUS
    Certification: ISO
    Model Number: 950mm & 1180mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 6-12USD Per Square Meter
    Packaging Details: Standard seaworthy packing
    Delivery Time: Within 7 days
    Payment Terms: 30% T/T IN ADVANCE AND 70% T/T BEFORE SHIPMENT
    Supply Ability: 2000,000 per month
    Contact Now
    Detailed Product Description
    Thickness: 50mm,75mm,100mm,120mm,150mm,200mm. Core Material: PU Polystyrene Panel
    Effective Width: 950mm 1180mm Type: Cold Room Panel
    Density: 38-42kg Surface Treatment: Galvanized

    Products Description

    Product Name Cold room PU cold storage board
    Core Material Polyurethane
    Width 1160mm
    Thickness

    50mm applicable temperature 5℃

    75mm applicable temperature -5℃
    100mm applicable temperature -15℃
    150mm applicable temperature -35℃
    Can customize 200mm pu panel

    Surface PPGI,GI,Stainless Steel, Embossed Aluminums
    Steel thickness 0.376/0.426mm
    Density 40±2kg/m³
    Connection Mode Cam Lock
    Fireproof Grade B1/B2
    Thickness 50mm-200mm
    Termal Conductivity ≤0.024W(m.K)
    Compressive strength ≥160Kpa
    Bonding strength >0.1Mpa
    Bending resistance ≤8.8mm

    Top quality:



    1. Import processing equipment, modernized production line



    2. Reasonable and strict processing flow.



    3. Strict quality inspection, five inspection procedures



    4. Special competence of personnel going to post after professional skill check.


    Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room

    High-class efficiency:



    1. Processing capacity two large-scale manufacturing workshop & design



    2. Material supply rapidness, smooth, with adequate spare parts



    3. Management capacity rich experience.



    production process

    Camlock polyurethane cold room insulation sandwich panel insulated polyurethane sandwich panel wall for cold room
