FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel Fire Resistance Grade A1

FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel Fire Resistance Grade A1

    • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
  • FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1

    Product Details:

    Place of Origin: Zhejiang,China
    Brand Name: FAMOUS
    Certification: CE ,ISO9000
    Model Number: STM 668

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M2
    Price: US32 /square
    Packaging Details: By standard seaworthy package
    Delivery Time: 5-8 days
    Payment Terms: L/C, D/A, T/T, Western Union
    Supply Ability: 100,00M2
    Contact Now
    Detailed Product Description
    Warranty:: 1 Year Length: 2.44m
    Fireproof Grade: Grade A Material: Sandwich Panel
    Moisture Resistance: YES Soundproof Resistance: YES
    Application: Exterior Wall Of Prefab House

    Rock wool polyurethane edge-sealing roof panel (FASECBUILDINGS)has excellent fire resistance

    Field of employment

    Modern standard workshops, breeding farms, convention and exhibition centers, stadiums, airports, logistics and warehousing and other construction industry plants and civil building roofs.

    Thickness of plating(mm)
    50,65,75,100mm

    Fireproof performance
    Grade A1

    Product features
    Using polyurethane side sealing technology, the plate is fireproof and has excellent moisture-proof performance.
    Four waves of corrugated to increase the robustness of the board.
    The inner plate can use aluminum foil instead of color steel plate to improve the high temperature and corrosion resistance of the product.

    Types and advantages of steel plates

    Material selection:
    Stainless steel plate, color steel plate, aluminum-magnesium-manganese plate, specific materials can be customized according to customer requirements, color steel plate thickness and color.



    ADWANTAGES

    · Light weight, 10kg ~ 14kg / m2 , equivalent to 1 / 30 of brick wall.
    · Good heat insulation, sound absorption and sealing performance.
    · The construction period can be shortened by more than 40%.
    · Bright color, beautiful appearance, no need to decorate the surface.
    · With high strength, it can be used as enclosure structure, load-bearing structure, bending resistance
    and pressure resistance, and general houses no need use beams and columns.
    FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1

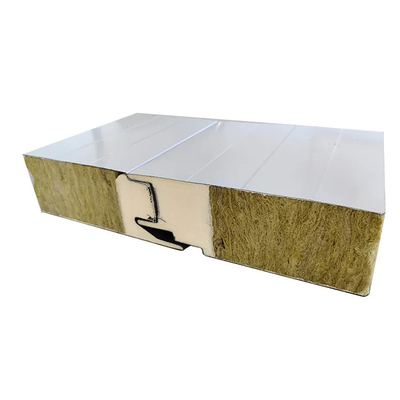

    Connection type

    FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1
    METALSNADWICHPANEL
    Steel Thickness 0.15-0.78 mm
    Core Thickness 50/75/100/150/200mm
    Core Material Rock wool/Glass wool/EPS/PU
    Effective width

    Roof: 950mm/980mm

    Wall: 950mm/1000mm/1150mm

    Length According to customer's request, less than 11.8m
    Structure

    three layers:

    (1) upper layer is steel sheet,

    (2) the inner layer is rock wool/Glass wool/EPS/PU

    EPS density 40(kg/m³)
    color White grey, blue or refer RAL
    Parts

    Steel line for easy connect one by one

    Film covering in order to protect the steel of panels

    lifetime 15 years
    Character Light in weight, heat insulation, water proof, environmental
    Use factory buildings, storages, exhibition halls, gymnasiums etc.
    Packing Packing in shipping on container or according to your demands



    FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1

    FASECBUILDINGS Rock Wool PU Edge-Sealing Roof Panel  Fire Resistance Grade A1

    FAQ

    1. who are we?
    We are based in Zhejiang, China, start from 2022,sell to North America(25.00%),Oceania(20.00%),Southeast Asia(10.00%),South America(10.00%),
    Western Europe(10.00%),Eastern Europe(10.00%),Africa(5.00%),Northern Europe(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU;
    Accepted Payment Currency:USD,EUR,JPY,AUD,CNY;
    Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
    Language Spoken:English,Chinese,Spanish,Arabic,Russian
