| Place of Origin: | Zhejiang,China |
| Brand Name: | FASEC |
| Certification: | CE ,ISO,SGS |
| Model Number: | NO.889 |
| Minimum Order Quantity: | 200 Square meters |
|---|---|
| Price: | USD30 Per Square Meter |
| Packaging Details: | by seaworthy package |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 square meters per month |
| Material: | Polyurethane | Connect Ways: | Plug-in And Camlock |
|---|---|---|---|
| Width: | 925mm, 960mm 1000mm ,1125mm | Application: | Used In Supermarket Cold Freezer Or Milk Farm |

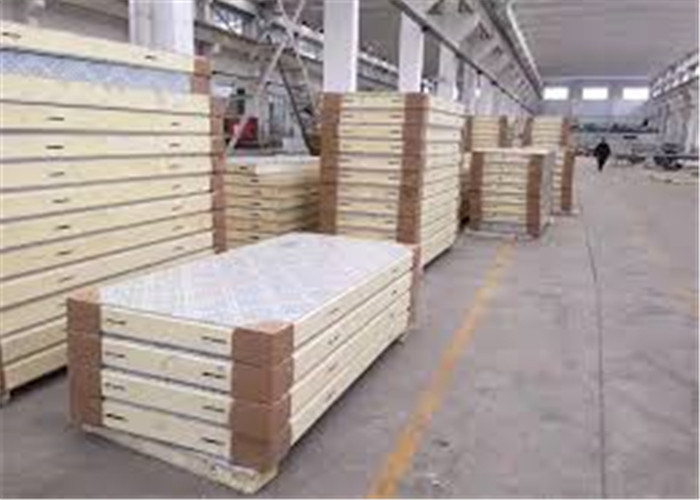

Walk In Cooler Insulation Cold Room Panels Sandwich Panel Wall For Cold Room Polyurethane Board
Specification
| Name | Cold Room Panel | ||
| Component | Top plate | Core material | Bottom plate |
| Thickness | 0.3-0.8mm (normal use) | 50-200mm | 0.3-0.8mm (normal use) |
| Material | PPGI, PPGL, Stainless, Aluminum | PU | PPGI, PPGL, Stainless, Aluminum |
| Type mode | 960mm PU wall and ceiling and roof cold room sandwich panel | ||
| Width | Normal 960mm or customized | ||
| Length | Customized | ||
| Color | Ral standard (normal colors : white) | ||
| Connection Type | Cam Lock | ||
| Application | Cold Storage Room | ||
| Advantages | heat insulation ,waterproof,competitive price,easy -installation | ||
Specification
| Cold room panel specification | |
| Panel Type | Polyurethane Sandwich Panel |
| Thickness of panels | 75mm 5℃ to 15℃ |
| 100mm -15℃ to 5℃ | |
| 120mm -20℃ to -15℃ | |
| 150mm -30℃ to -20℃ | |
| 200mm lower than -30℃ | |
| Panel Length | Customized longest: 11.8m (according to container dimension) |
| Panel Width | 960mm standard |
| PU Density | 40-42kg/m3 |
Walk In Cooler Panels Details:
1. Our Pu Panel Standard width is 960mm , The length can be customized according to your requirements .
2. PU panel is B2 fire proof grade, keep best insulation effect and safety.
3. Durable zinc-coated cam lock, very easy to install, anti-corrosion effect is very good.
4. 40-42 kg/m3 density PU foam, the insulation effect is good . In other words , can save your electricity cost .
5. raw material , environmental friendly.
After placing order ,our designer will design an exact drawing for your cold room , you can install it easily .
FAQ
A: Can you customize size for me?
B: Yes, all of our product is customized. Just let us know your dimension request or your total cargo kgs , will give you our suggestion.
B: What brand compressor do you use?
We normally provide Bitzer , copeland etc famous brand compressor , quality guaranteed.
C: How about your delivery time?
For panels , normally 7~10 days.
For equipment .
1)If your voltage is same with China , like 380V/50HZ/3Phase , our delivery time can be 15~25 work days.
2) If your voltage is different with China , like 220V/60HZ/3Phase etc , our delivery time is around 45 work days.
D: Can you arrange engineer for us to install my cold room?
Yes , we can provide engineer go abroad to guild the installation , you need to solve visa , air ticket , meal , hotel , salary etc .
