| Place of Origin: | Zhejiang,China |
| Brand Name: | FASEC |
| Certification: | CE,ISO,SGS |
| Model Number: | HZFC No.867 |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | USD 25 Per Square Meter |
| Packaging Details: | By Seaworthy Package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T. |
| Supply Ability: | 100000 per month |
| Product Name: | Walk-in Coolers,walk-in Cold Room For Shrimp | Refrigerant: | R404A/R22 Or Others |
|---|---|---|---|
| Door Type: | Hinged Door,sliding Door,swing Door | Thickness Of Panel: | 50mm 75mm 100mm 120mm 150mm 200mm |
| Compressor: | Our Own Brand | Application: | Cold Storage Room Freezer Room |
| Surface Material: | PPGI,Stainless Steel/color Steel/galvanized Steel | Size: | Costomers' Requirements |
| Functions: | Frozen Food Storage Or Others,keep Fresh |

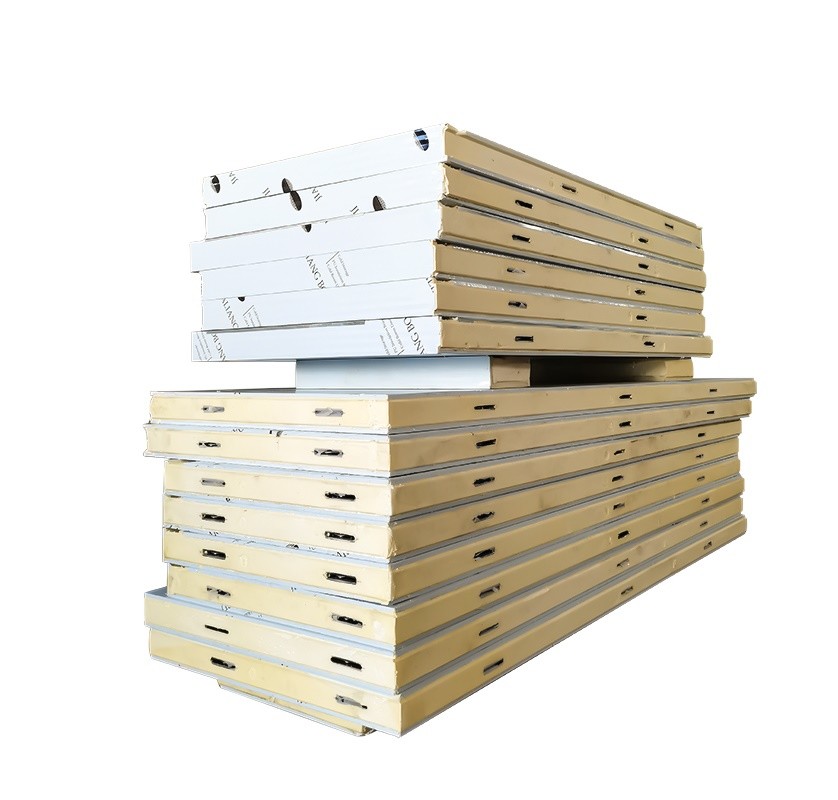

Manufacturer Insulation Polyurethane Board Color Stone Sandwich Panel Wall For Cold Room Polyurethane Board
Features
High strength, wear resistant, oil resistant, shock absorption, heat preservation effect is good.
Parameters
| Product name | Polyurethane (PU) Sandwich Board | |
| Thickness | upper layer | 0.5-0.8mm |
| core material | 75mm, 100mm, 120mm,150mm | |
| bottom layer | 0.5-0.8mm | |
| Effective Width | standard | 960mm |
| other | can be customized | |
| Length | can be customized, less than 12m | |
| Density | 38-40kg/m3 | |
| Weight | up to model | |
| Color | any (generally white, blue, red, grey,) | |
| Temp tolerance | -120-90℃ | |
| Fire resistance level | A2 (incombustible) | |
| Surface profile | flat,corrugated,big rib, small wave | |
| Compression bearing | ≥0.2Mpa | |
| Material | upper layer | PPGI (prepainted galvanised steel) color steel sheet |
| inner layer | PU foam (injected, not glued) | |
| bottom layer | PPGI (prepainted galvanised steel) color steel sheet | |
| Parts | Eccentric hook used for connection of panel | |
| Film covering for protecting the surface layer | ||
| Heat transfer coefficient | 0.019 W/M*K | |
| Characteristics | heat insulation energy-saving | 100mm width can keep temp at 0℃ (suit for fresh keeping) |
| 150mm width can keep temp at -18℃ (suit for cold storage) | ||
| 200mm width can keep temp at -38℃ (suit for freezing) | ||
| water resistance and sound proof | ||
| weather proofing | ||
| fire retardant level:B | ||
| high strength and bending resistance | ||
| easy quick installation and dismantling,labour cost saving | ||
| light weight compared to traditional stone or plaster panel | ||
| safe and green,good appearance,without formaldehyde | ||
| Lifespan | can reach 15-20 years | |
| Usage | Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc. | |
Produce Advantage
1. Heat insulation pu sandwich panel (the abbreviation of Polyurethane is PU sandwich panel) have characteristics of high load intensity, small water-absorptive, and the stability in either low temperature or the high temperature is good, the service life is long, thermal insulation performance is outstanding and so on.
2. Good supporting, heat resistant, sound-insulated, sound absorption, light quality, non-toxic, odorless, green environmental protection.
3. PU freezer sandwich panels can cementation with the steel plates, the cements, the fiberboards, the bricks and many kinds of materials very strongly, in usual situation, it would not fall off and still strengthen its thermal insulation and waterproofing effects.
4. The unique produce foaming craft made the products have exquisite and even abscesses, the Thermal conductivity is low, the size stability is good, is very suitable for both of the low pressure and the high pressure construction.
