|Place of Origin:||Zhejiang,China|
|Minimum Order Quantity:||300 Square meters|
|Price:||USD30 Per Square Meter|
|Packaging Details:||by seaworthy package|
|Delivery Time:||15 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100000 square meters per month|
|Material:||Polyurethane||Connect Ways:||Plug-in And Camlock|
|Width:||925mm, 960mm 1000mm ,1125mm||Application:||Used In Supermarket Cold Freezer Or Milk Farm|
200mm Freezer Camlock PU Sandwich Panel Cold Room Used in Small Cold Storage
|Type||Polyurethane sandwich cold room panel|
|Color||Any Ral Color|
|Surface Appearance||Small wave, Flat, Embossment, Big rib, etc.|
|Usage||Cold room,prefab houses, warehouse, factory, shop, office ,etc|

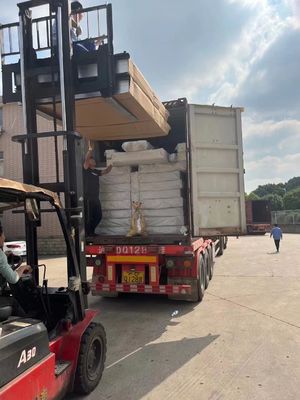

Packing Details :
Carton package Standard package for monoblock unit is carton, it is with pallet on the bottom for easy transportation. Suitable
for container shipment.
For LCL delivery without container, you can update the package with plywood, the unit can be well protected.
Plastic film for panel
Each panel is well wrapped with plastic film respectively, the corner is protected with brown paper.
Delivery Details : 15 days
PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
Q1. What is the material of cold storage panel?
Stainless steel, Painted galvanized steel or Galvanized steel
Q2. What is the thickness of the cold storage panel?
The thickness of the cold storage panel is 75mm, 100mm, 150mm, 180mm, and 200mm.
Q3. What is the applicable temp range base on different thickness?
1.75mm medium temperature (-5°C or above)
2.100mm low temperature (-15°C or above)
3.150mm ultra low temperature (-35°C or above)
4.200mm ultra low temperature (-50°C or above)
Q4.If you want to customize the cold storage, the details about the cold storage as follows you should tell me.
1. What is the size of the cold storage?
2. What is the cold storage used for?
3. What is the required temperature of the cold storage?
Q5.What's the difference of plug-in PU sandwich panel compared with cam-lock PU sandwich panel?
Plug-in PU sandwich panel is fixed by self tapping screw.(Mainly used in large duty cold storage)
Cam-lock PU sandwich panel is fixed by cam lock. (Mainly used in small duty cold storage)
